Product Features
Key design and engineering features of the YZ60 / YZ70
✓
Compact 60mm square frame for integration into space-constrained equipment
✓
Pure copper winding delivers high torque efficiency at low voltage (12V / 24V)
✓
Wide gear ratio range 1:2.5 to 1:400 for diverse speed and torque requirements
✓
Low voltage operation ideal for battery-powered and embedded drive systems
✓
Smooth, quiet operation suitable for consumer, medical and laboratory applications
✓
Rated for 24/7 continuous duty in embedded industrial drive environments
✓
Wide gear ratio range 1:3 to 1:860 — widest in the compact DC gear motor class
✓
40W rated output for medium-duty continuous DC drive applications
✓
Reinforced Φ10mm output shaft for higher radial and axial load capacity
Models & Technical Specifications
Select a model to see its full parameter table and dimensional drawing
YZ60 Permanent Magnet DC Gear Motor — 60mm Frame, 20W / 25W
12V / 24V · 20W / 25W · Gear Ratio 1:2.5 – 1:400
The YZ60 is a compact 60mm permanent magnet DC gear motor delivering 20W and 25W output at 12V and 24V supply voltages. Pure copper winding ensures high torque efficiency and reliable 24/7 operation across a wide speed range. With a gear ratio range from 1:2.5 to 1:400, it covers everything from moderate-speed actuation to very slow precision positioning — ideal for battery-powered systems, mobile robotics and embedded industrial drives.

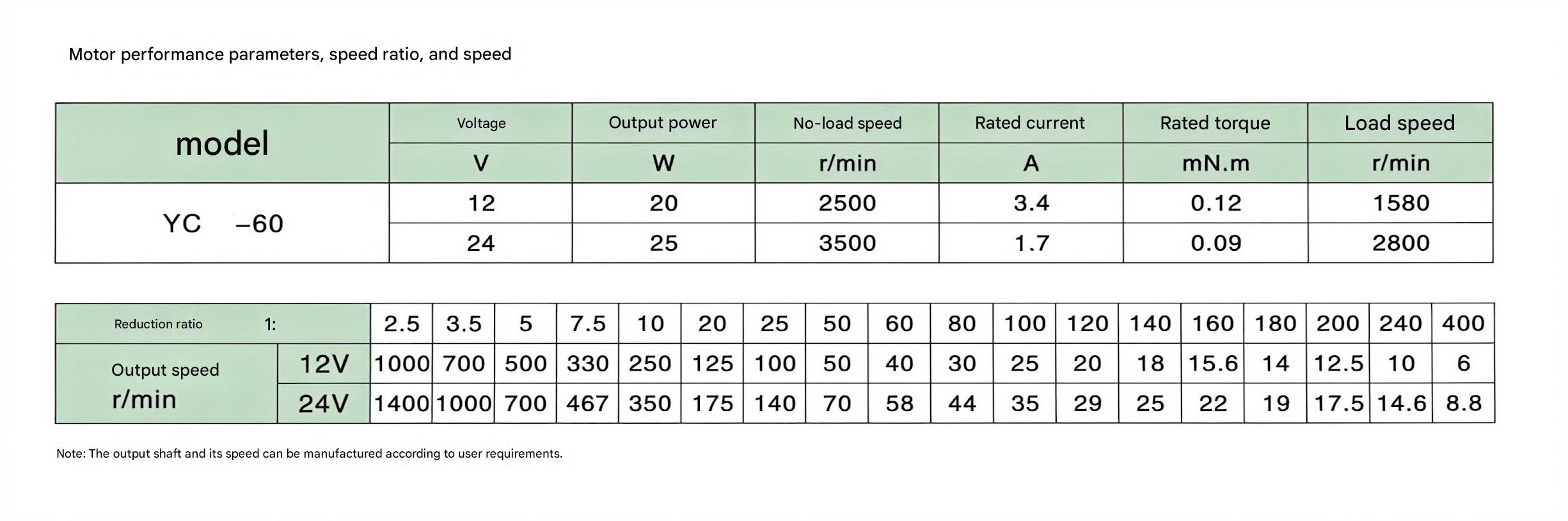

📋 Performance Parameter Table

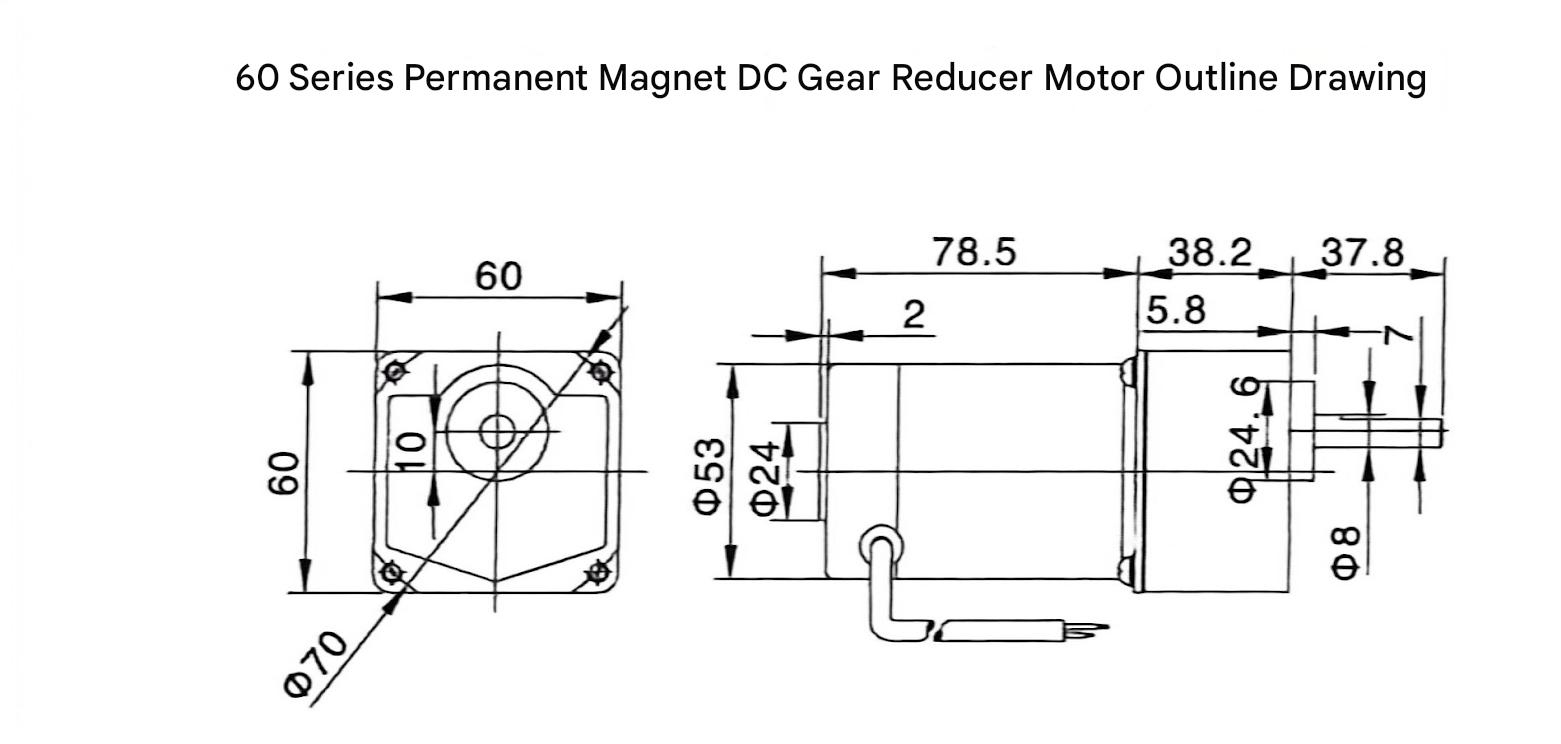

📐 Dimensional Drawing
| Parameter | Specification |
|---|
| Model | YZ60 |
| Motor Type | DC Gear Motor |
| Rated Power | 20W / 25W |
| Supply Voltage | 12V / 24V |
| No-Load Speed | See details |
| Gear Ratio Range | 1:2.5 – 1:400 |
| Output Shaft Diameter | Φ8mm |
| Frame Size | 60mm Square |
| Insulation Class | Class F (155°C) |
| Duty Cycle | S1 — Continuous 24/7 |
💬 Get a quote for this model →
YZ70 Permanent Magnet DC Gear Motor — 70mm Frame, 40W
12V / 24V · 40W · Gear Ratio 1:3 – 1:860
The YZ70 is a 70mm permanent magnet DC gear motor delivering 40W at 12V and 24V supply voltages, with one of the widest ratio ranges in the DC gear motor class — 1:3 to 1:860. Pure copper winding ensures high torque efficiency and reliable 24/7 operation. The reinforced Φ10mm output shaft handles higher radial loads than 60mm frame motors, making it suitable for more demanding mobile robotics, automotive and light industrial applications.
📋 Performance Parameter Table
📐 Dimensional Drawing
| Parameter | Specification |
|---|
| Model | YZ70 |
| Motor Type | DC Gear Motor |
| Rated Power | 40W |
| Supply Voltage | 12V / 24V |
| No-Load Speed | See details |
| Gear Ratio Range | 1:3 – 1:860 |
| Output Shaft Diameter | Φ10mm |
| Frame Size | 70mm Square |
| Duty Cycle | S1 — Continuous 24/7 |
💬 Get a quote for this model →
Applications
Typical industries and equipment where the YZ60 / YZ70 excels
🤖
Mobile Robotics & AGVs
Wheel drives and joint actuators for service robots, AGVs and autonomous mobile platforms.
🏠
Smart Home Devices
Automated blind motors, curtain tracks, smart valve actuators and home appliance drives.
🔋
Battery-Powered Equipment
Low-voltage drive for portable tools, medical devices and battery-powered field instruments.
📦
Automated Dispensers
Precise dosing and product delivery mechanisms in vending machines and retail automation.
🚗
Automotive Accessories
Power window regulators, seat adjusters, sunroof drives and HVAC damper actuators.
🏠
Smart Home & Building
Automated blind motors, heavy curtain track drives, door lock actuators and smart valve drives.
Advantages
Why engineers and buyers choose CoreMotor Tech for the YZ60 / YZ70
01
12V / 24V dual voltage supports both standard industrial DC supply and battery-powered systems
02
Compact 60mm frame integrates into tight mechanical assemblies without modification
03
Export documentation and shipping coordination provided
04
OEM available with flexible MOQ — custom voltage, shaft and ratio specifications supported
Frequently Asked Questions
Common questions about the YZ60 / YZ70
What is the difference between 12V and 24V versions?+
The 12V version draws higher current for the same power output. The 24V version operates at lower current, reducing cable losses — preferred for longer cable runs or battery systems where efficiency matters. Both deliver the same mechanical output.
Can I vary the speed of this motor?+
Yes. DC permanent magnet motors are inherently variable speed — simply vary the supply voltage or use a PWM speed controller. The motor speed is proportional to the applied voltage.
Is this motor suitable for battery-powered applications?+
Yes. At 12V or 24V DC, it is well suited to battery-powered systems. At rated load the current draw is moderate — please contact us with your battery capacity and duty cycle for a runtime estimate.
What gear ratio should I choose?+
Divide your required output speed by the motor's no-load speed. For very low speed positioning applications, choose ratios above 1:100. For higher speed drives, choose ratios of 1:5 to 1:20. Contact us for application-specific selection support.
What is the difference between YZ60 and YZ70?+
The YZ70 uses a larger 70mm frame with a Φ10mm output shaft versus the YZ60's Φ8mm, handling higher radial and axial loads. The YZ70 also offers a wider gear ratio range up to 1:860 versus the YZ60's 1:400. Choose YZ70 for heavier loads or lower output speeds.
Can I control the speed of this motor?+
Yes. Permanent magnet DC motors are inherently variable speed — vary the supply voltage or use a PWM speed controller. Speed is approximately proportional to applied voltage.
