DC Gear Motor
CC Series Permanent Magnet DC Geared Motor — CC1 / CC2 / CC3
12V / 24V · Gear Ratio 1:5 – 1:810
The CC1, CC2 and CC3 permanent magnet DC geared motors share a compact, robust design with pure copper winding and high torque output, with gear ratios from 1:5 to 1:810 at 12V / 24V. They suit embedded, mobile and industrial drive systems that need reliable 24/7 operation.
Product Features
Key design and engineering features of the CC1 / CC2 / CC3
✓
Compact form factor for integration into tight mechanical assemblies
✓
Wide gear ratio range 1:5 to 1:810 covering slow positioning to moderate speed drives
✓
100% pure copper winding for high torque efficiency at 12V and 24V
✓
12V / 24V dual voltage for battery-powered and industrial DC systems
✓
Low operating noise suitable for consumer, office and laboratory environments
✓
Rated for 24/7 continuous duty in embedded industrial applications
✓
Robust gearbox construction for reliable high-torque output in demanding applications
✓
Wide gear ratio range 1:5 to 1:810 for diverse speed and torque requirements
✓
100% pure copper winding for efficient power conversion at 12V and 24V
Models & Technical Specifications
Select a model to see its full parameter table and dimensional drawing
CC1 Permanent Magnet DC Geared Motor
12V / 24V · See details · Gear Ratio 1:5 – 1:810
The CC1 is a compact permanent magnet DC geared motor designed for embedded, mobile and space-constrained industrial applications. With a gear ratio range from 1:5 to 1:810 and 12V/24V dual voltage, it delivers high torque in a small footprint. Pure copper winding ensures efficient power conversion and reliable 24/7 operation in demanding low-voltage drive environments.
📋 Performance Parameter Table

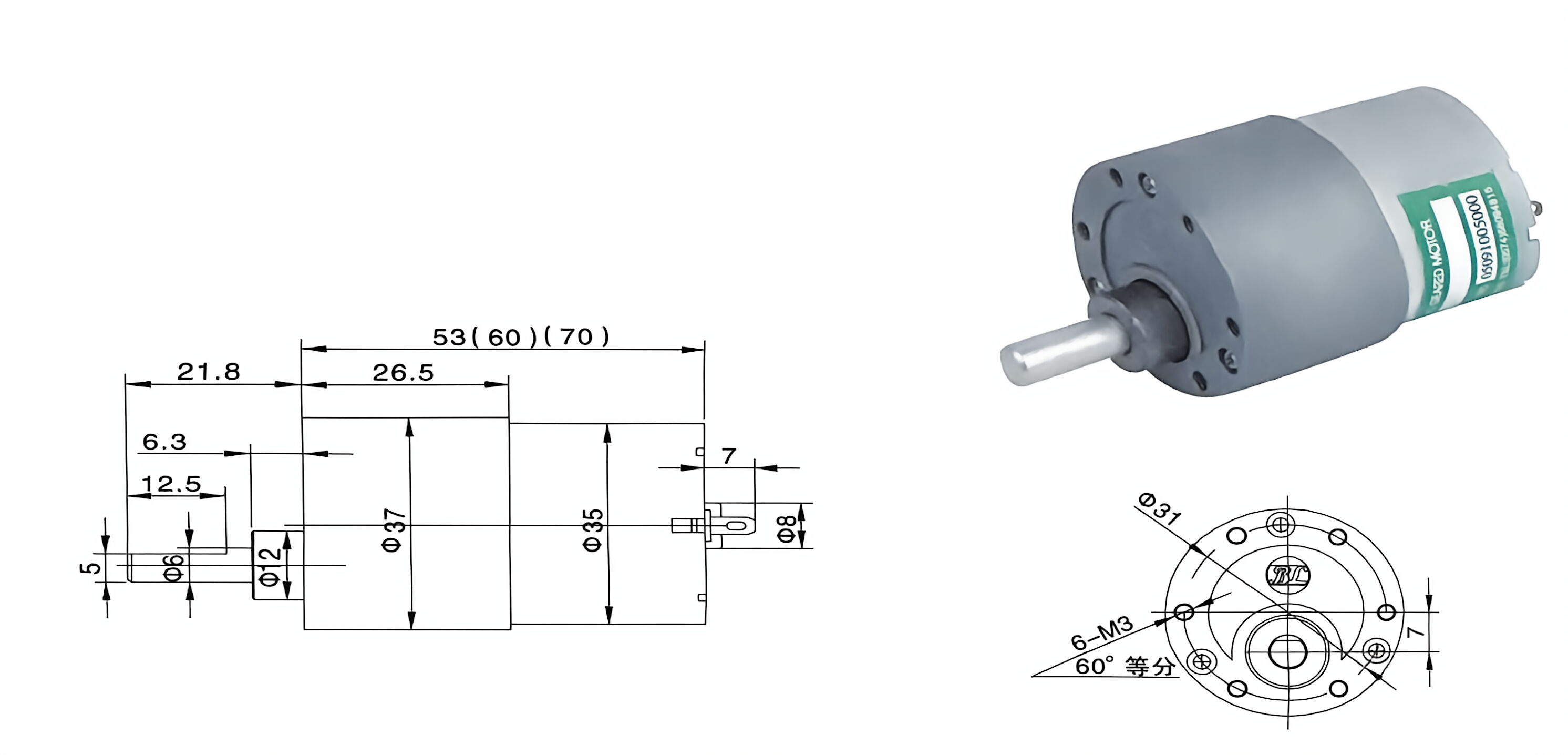

📐 Dimensional Drawing
| Parameter | Specification |
|---|
| Model | CC1 |
| Motor Type | DC Gear Motor |
| Rated Power | See details |
| Supply Voltage | 12V / 24V |
| No-Load Speed | See details |
| Gear Ratio Range | 1:5 – 1:810 |
| Output Shaft Diameter | See details |
| Frame Size | See details |
| Duty Cycle | S1 — Continuous 24/7 |
💬 Get a quote for this model →
CC2 Permanent Magnet DC Motor
12V / 24V · See details · Gear Ratio 1:5 – 1:810
The CC2 permanent magnet DC motor features a robust gearbox design delivering reliable high torque output across the full ratio range from 1:5 to 1:810. Operating at 12V and 24V with pure copper winding, it is engineered for 24/7 continuous duty in low-voltage industrial and embedded drive systems where durability and consistent torque output are the primary requirements.
📋 Performance Parameter Table
📐 Dimensional Drawing
| Parameter | Specification |
|---|
| Model | CC2 |
| Motor Type | DC Gear Motor |
| Rated Power | See details |
| Supply Voltage | 12V / 24V |
| No-Load Speed | See details |
| Gear Ratio Range | 1:5 – 1:810 |
| Output Shaft Diameter | See details |
| Frame Size | See details |
| Duty Cycle | S1 — Continuous 24/7 |
💬 Get a quote for this model →
CC3 Permanent Magnet DC Motor
12V / 24V · See details · Gear Ratio 1:5 – 1:810
The CC3 permanent magnet DC motor delivers high torque in a compact package through a precision gearbox covering ratios from 1:5 to 1:810. With 12V and 24V supply compatibility and pure copper winding, it is engineered for reliable 24/7 continuous operation in embedded, mobile and low-voltage industrial drive applications where space is at a premium.
📋 Performance Parameter Table
📐 Dimensional Drawing
| Parameter | Specification |
|---|
| Model | CC3 |
| Motor Type | DC Gear Motor |
| Rated Power | See details |
| Supply Voltage | 12V / 24V |
| No-Load Speed | See details |
| Gear Ratio Range | 1:5 – 1:810 |
| Output Shaft Diameter | See details |
| Frame Size | See details |
| Duty Cycle | S1 — Continuous 24/7 |
💬 Get a quote for this model →
Applications
Typical industries and equipment where the CC1 / CC2 / CC3 excels
🖨️
Office & Consumer Electronics
Printer paper feeds, scanner transport mechanisms, copier components and disc drives.
🔐
Access Control Systems
Electronic door locks, barrier arm drives, gate openers and security latch actuators.
🏠
Smart Home Devices
Automated blinds, curtain tracks, smart valve actuators and compact home appliance drives.
⚡
Portable Power Tools
Compact drive units for cordless tools, electric screwdrivers and handheld equipment.
🌊
Marine & Outdoor Equipment
Waterproof-ready drives for marine winches, solar trackers and outdoor gate openers.
💡
Building Automation
HVAC damper drives, automated lighting controls and building management actuators.
Advantages
Why engineers and buyers choose CoreMotor Tech for the CC1 / CC2 / CC3
01
Compact design integrates into assemblies where larger motors cannot fit
02
Wide ratio range eliminates need for multiple motor SKUs across different speed requirements
03
Export documentation and shipping coordination provided
04
OEM available with flexible MOQ — custom voltage, shaft and ratio supported
Frequently Asked Questions
Common questions about the CC1 / CC2 / CC3
What applications is the CC1 best suited for?+
The CC1 is optimised for compact embedded applications where space is limited — office equipment, consumer electronics, access control and smart home devices. Its compact frame and wide ratio range make it versatile for many low-voltage drive requirements.
How do I select the correct gear ratio?+
Divide your required output speed by the motor's no-load speed. For slow positioning (under 10 RPM), choose ratios above 1:200. For moderate speed drives, choose 1:5 to 1:50. Contact us for application-specific selection.
Is this motor available with an encoder?+
Encoder options may be available for closed-loop speed control applications. Please contact us with your feedback requirement and we will advise on available configurations.
Can I run this motor at reduced voltage for lower speed?+
Yes. Permanent magnet DC motors are inherently variable speed. Running at reduced voltage lowers speed proportionally. For precision speed control, use a PWM controller rather than resistive voltage reduction.
What is the difference between CC1 and CC2?+
Both share the same ratio range (1:5–1:810) and voltage (12V/24V), but the CC2 features a more robust gearbox construction for applications with higher radial loads or more demanding duty cycles. Choose CC2 when durability under load is the priority.
Is this motor suitable for continuous outdoor use?+
The standard CC2 is suitable for indoor and sheltered outdoor environments. For fully outdoor or marine applications requiring IP67 or higher protection, please contact us to discuss sealed versions.
