All-in-One Home Energy Storage System
Hybrid inverter + LiFePO4 battery · 1.8 – 11kW · 2.56 – 21.09kWh
A LiFePO4 battery and a hybrid solar inverter in one cabinet. Connect PV panels, the grid or a generator directly, store surplus solar energy for the evening, and keep the home running during peak-tariff hours or outages. Nine model series cover 1.8kW to 11kW output and 2.56kWh to 21.09kWh capacity, with optional Wi-Fi / GPRS monitoring.
AC Output230Vac · 50/60Hz
Product Features
Key design and engineering features of the all-in-one home energy storage system
✓
Integrated inverter, MPPT solar charger and LiFePO4 battery in one cabinet — fewer components and simpler installation
✓
Built-in MPPT solar charging with up to 8.5kW PV input on single-MPPT models and dual MPPT on the larger PT8016SP and PT1116 / PT1120
✓
90% depth of discharge with a wide range from 2.56kWh to 21.09kWh to match small flats and large family homes
✓
Fast transfer to battery power — 10ms typical switch time to keep computers and appliances running during a grid outage
✓
Parallel power and battery expansion on most models (customizable) for growing energy demand
✓
Optional Wi-Fi / GPRS module for remote monitoring; RS485 / CAN communication built in
✓
Low operating noise — below 50dB on selected models, below 60dB on all others
✓
Compact cabinet designs, including a slim floor-standing unit (ESS-L-10F01-P5.5M6, only 165mm deep)
Models
8 photographed model series — PT2025 (2.56kWh, 1800W) is listed in the data table below

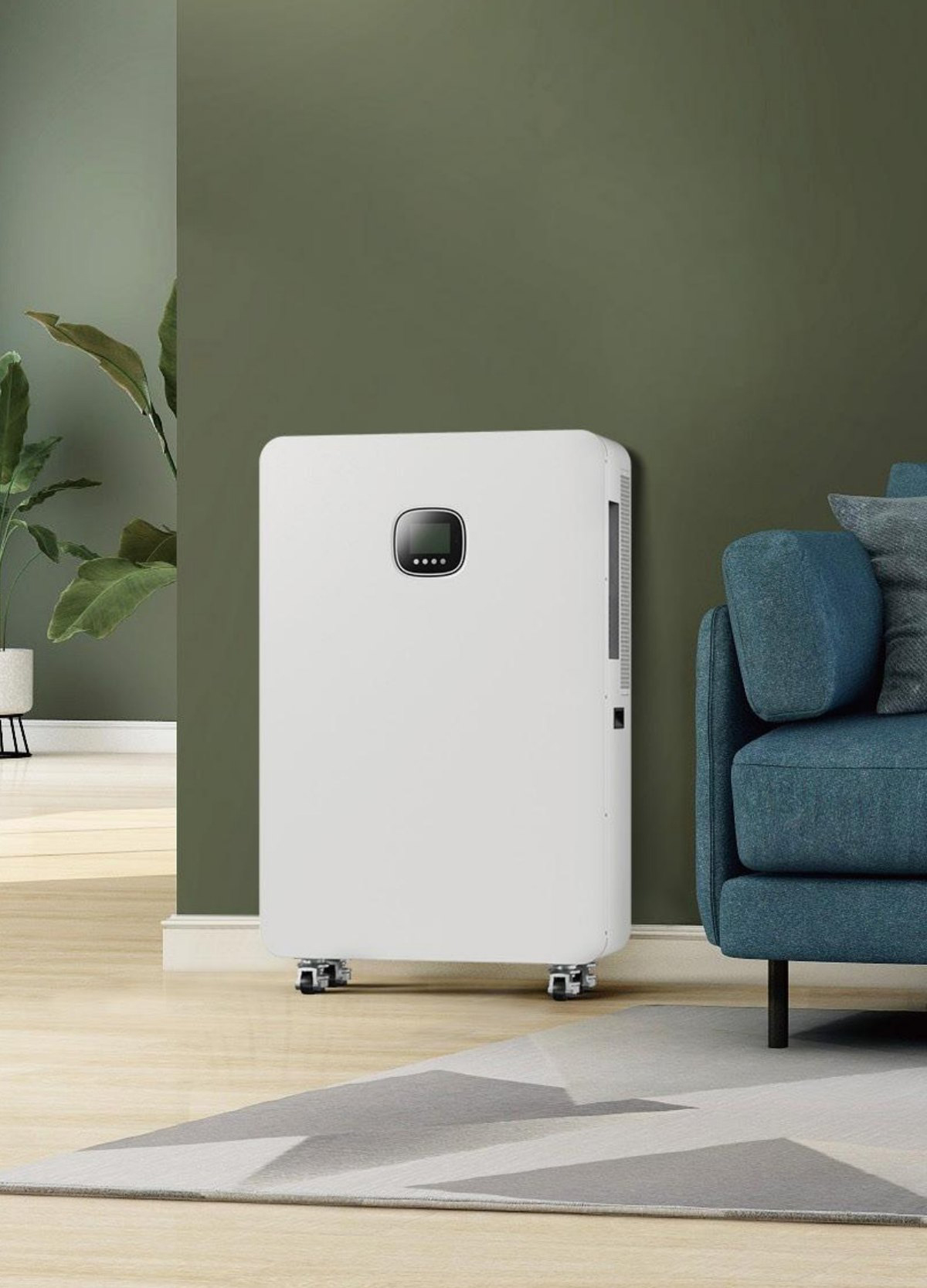

PT5515SP / PT5516SP5500W · 14.336 / 16.0768 kWh

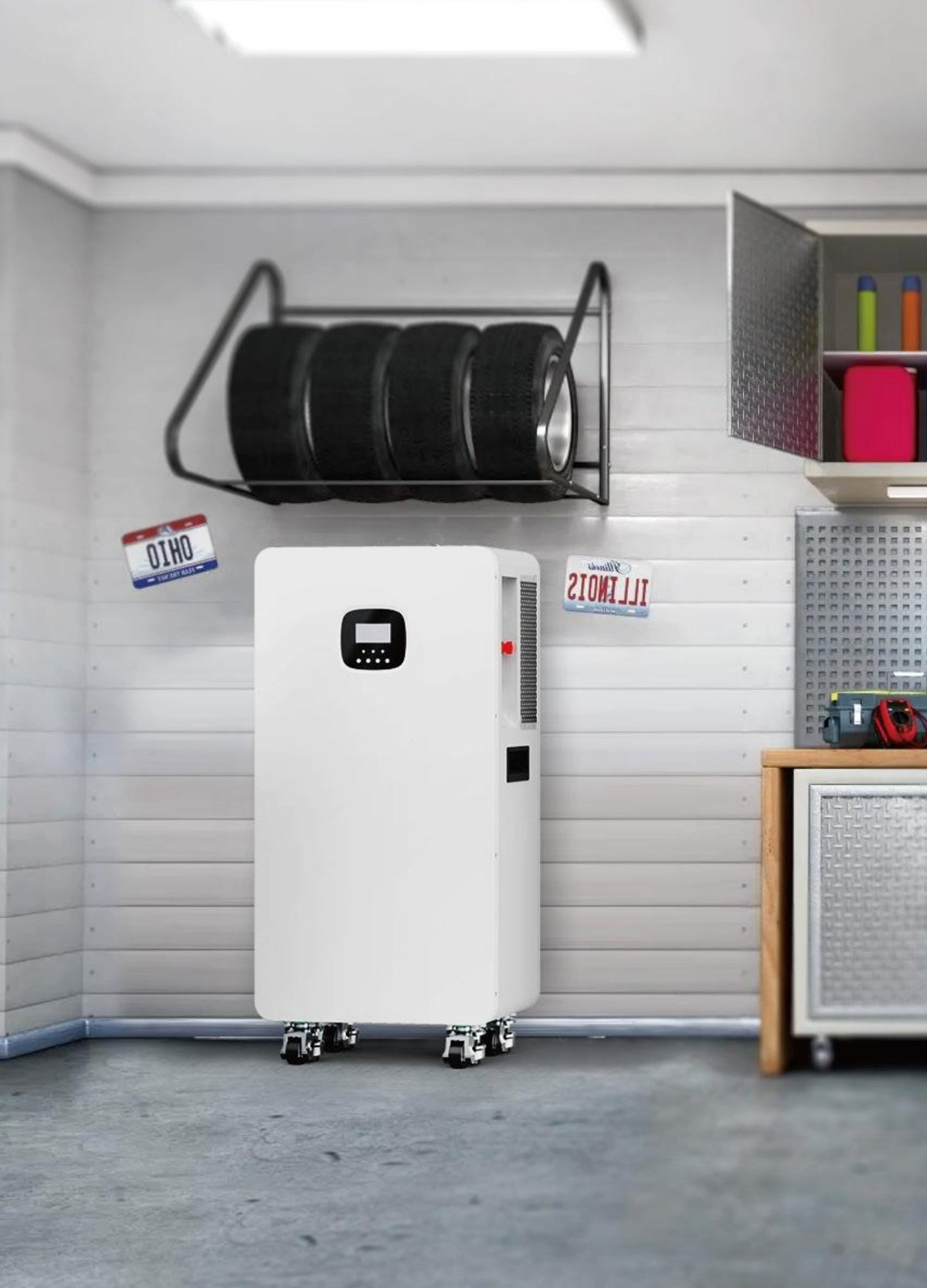

PT5510S5500W · 10.24 kWh

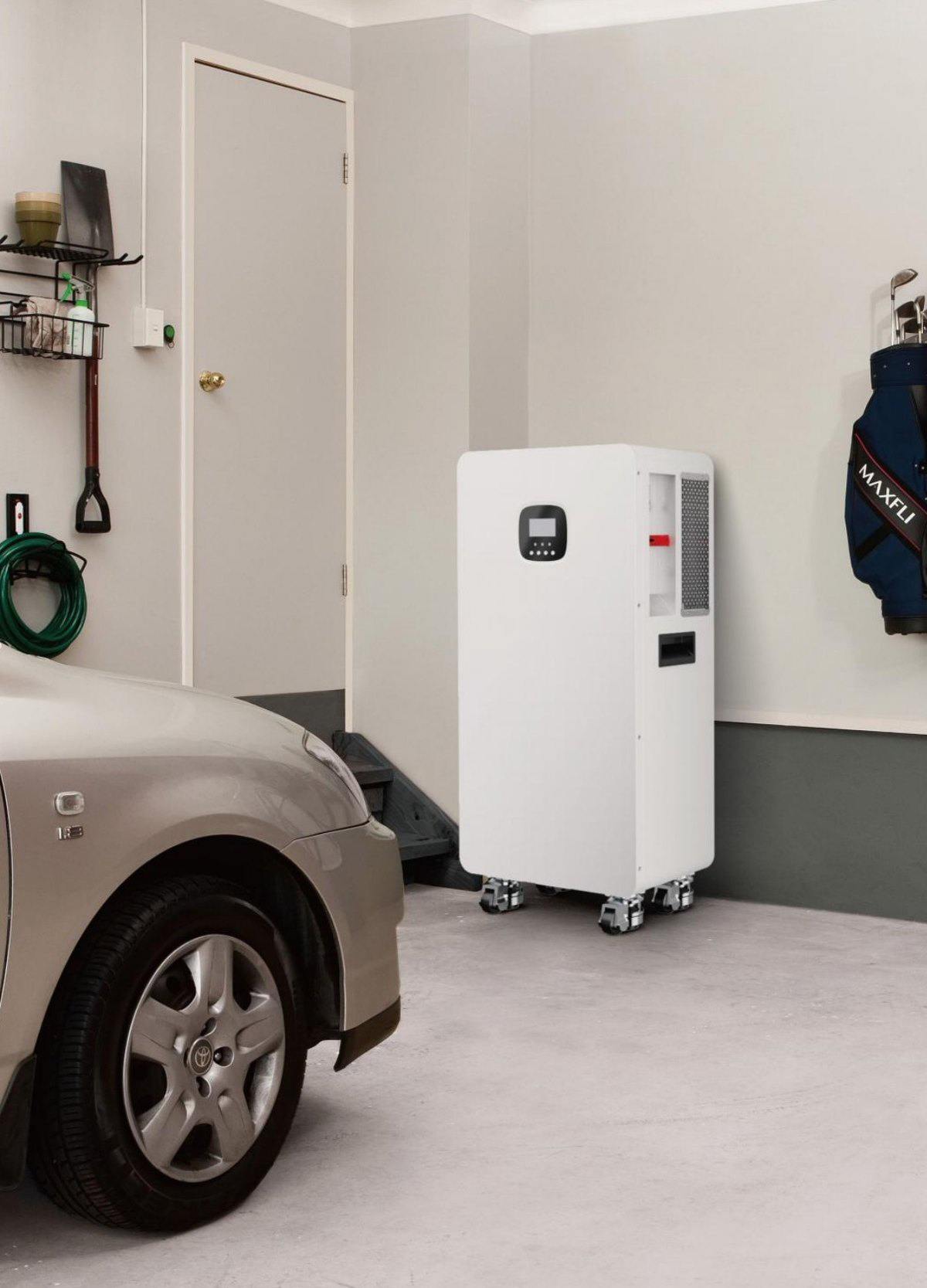

PT3570S / PT3580S3500W · 7.168 / 8.0384 kWh

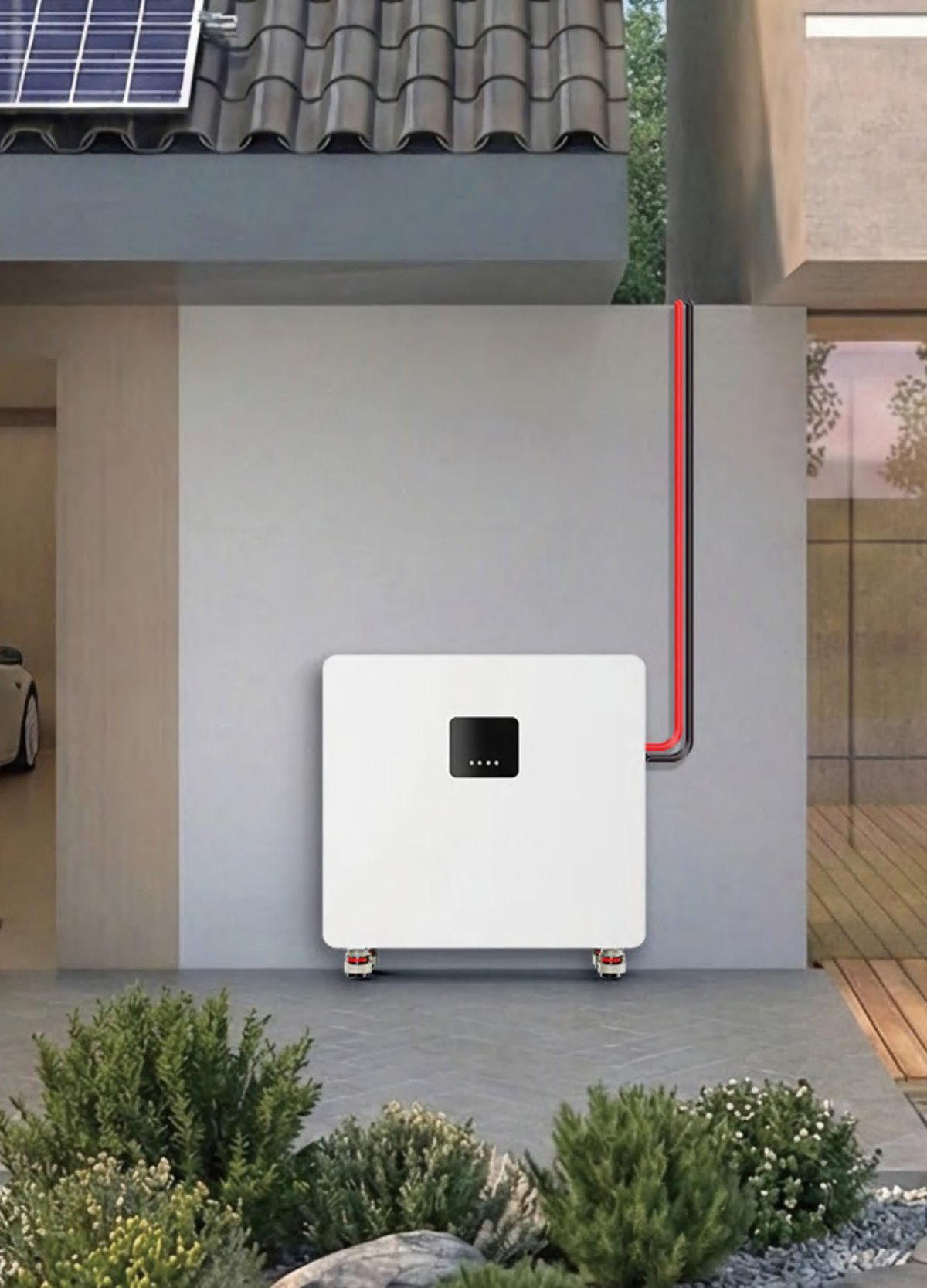

PT4075 / PT40804000W · 7.168 / 8.0384 kWh

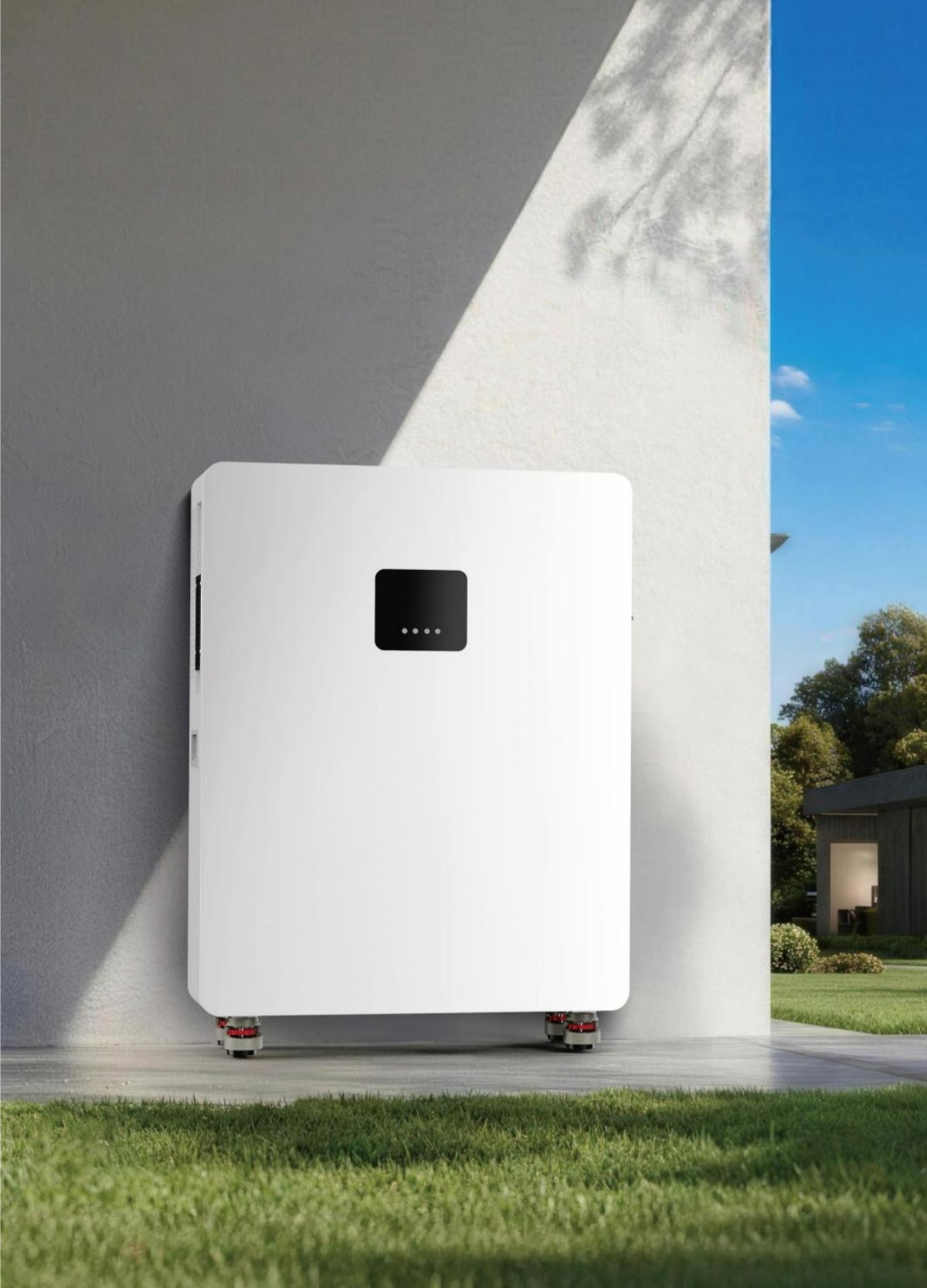

PT6215 / PT62166200W · 14.336 / 16.0768 kWh

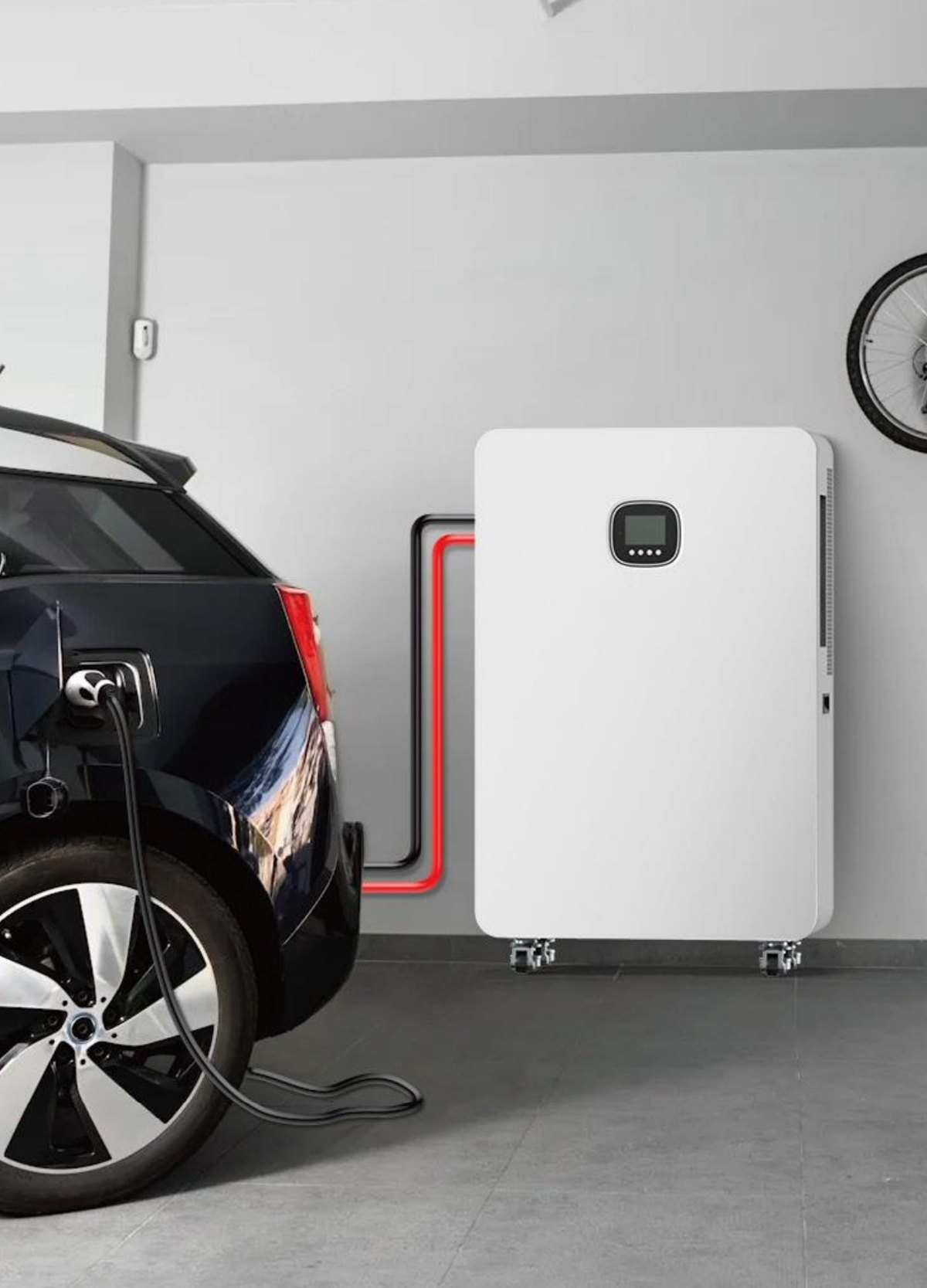

PT8016SP8000W · 16.0768 kWh

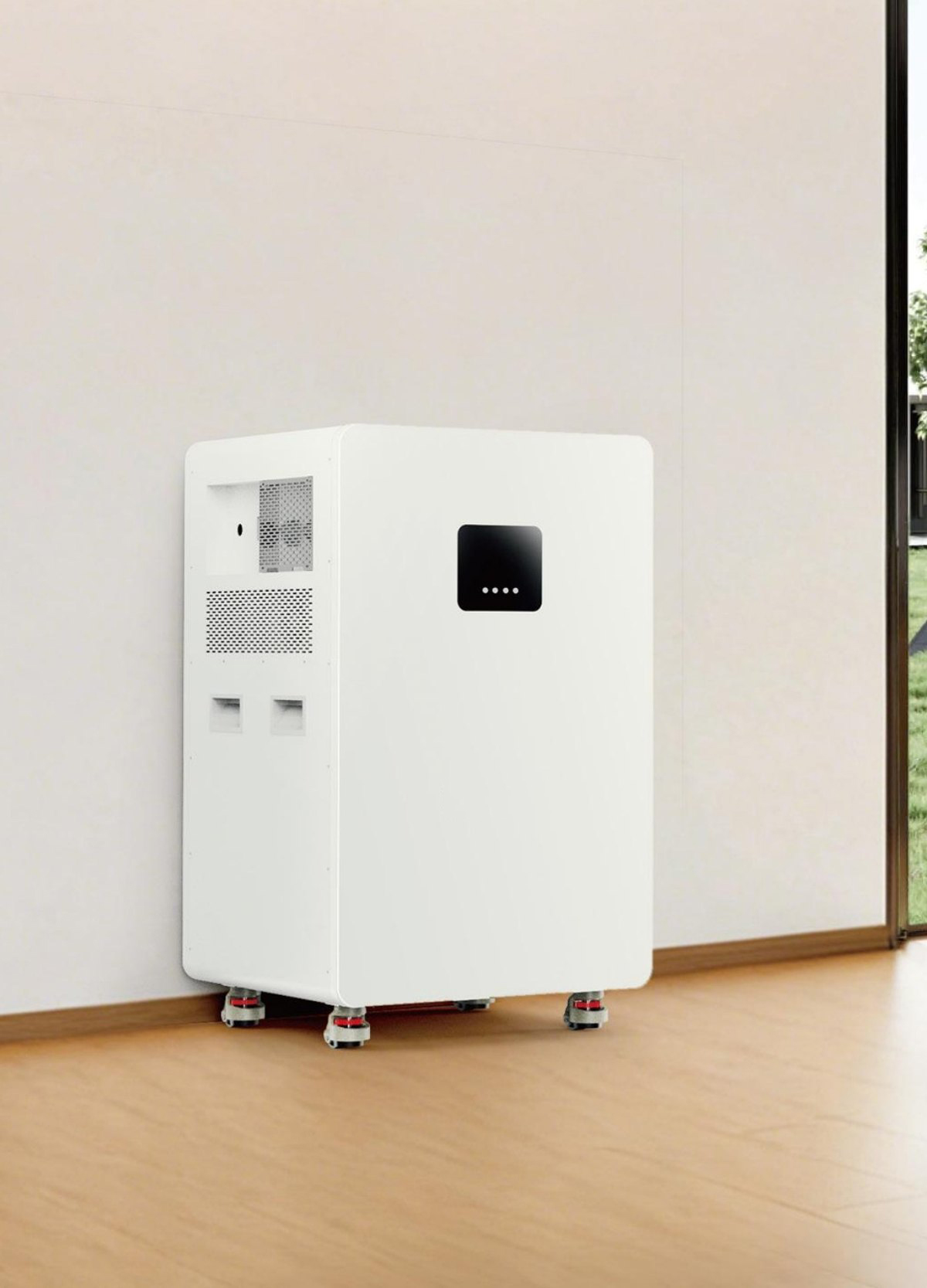

PT1116 / PT112011000W · 16.0768 / 21.0944 kWh

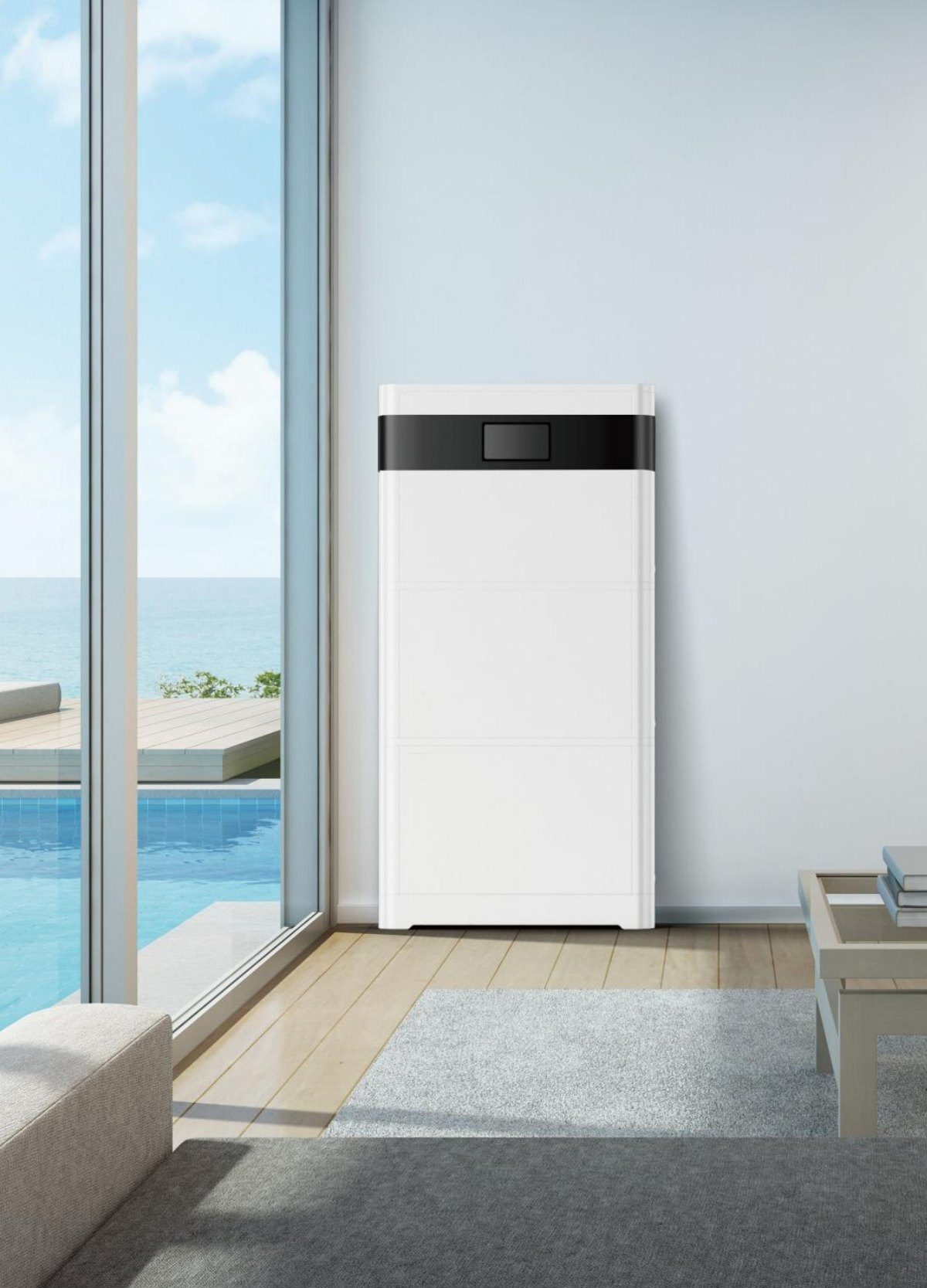

ESS-L-10F01-P5.5M65500W · 10.4448 kWh · slim floor-standing
Technical Specifications
Compare all 9 model series — scroll sideways on small screens
| Product Model | PT2025 | PT3570S / PT3580S | PT4075 / PT4080 | PT5510S | PT5515SP / PT5516SP | PT6215 / PT6216 | PT8016SP | PT1116 / PT1120 | ESS-L-10F01-P5.5M6 |
|---|
| Battery |
|---|
| Battery Type | LFP, 3.2V/100Ah | LFP, 3.2V/280Ah/314Ah | LFP, 3.2V/280Ah/314Ah | LFP, 3.2V/200Ah | LFP, 3.2V/280Ah/314Ah | LFP, 3.2V/280Ah/314Ah | LFP, 3.2V/314Ah | LFP, 3.2V/206Ah/314Ah | LFP, 3.2V/102Ah |
|---|
| Rated Energy | 2.56 kWh | 7.168 / 8.0384 kWh | 7.168 / 8.0384 kWh | 10.240 kWh | 14.336 / 16.0768 kWh | 14.336 / 16.0768 kWh | 16.0768 kWh | 16.0768 / 21.0944 kWh | 10.4448 kWh |
|---|
| Rated Battery Voltage | 25.6V | 25.6V | 25.6V | 51.2V | 51.2V | 51.2V | 51.2V | 51.2V | 51.2V |
|---|
| Voltage Range | 21.6~29.2V | 21.6~29.2V | 21.6~29.2V | 43.2~58.4V | 43.2~58.4V | 43.2~58.4V | 43.2~58.4V | 43.2~58.4V | 43.2~58.4V |
|---|
| Depth of Discharge | 90% | 90% | 90% | 90% | 90% | 90% | 90% | 90% | 90% |
|---|
| Inverter Output |
|---|
| Rated Output Power | 1800W | 3500W | 4000W | 5500W | 5500W | 6200W | 8000W | 11000W | 5500W |
|---|
| Max. Peak Power | 3600VA | 6000VA | 8000VA | 11000VA | 11000VA | 12400VA | 12000VA | 22000VA | 11000VA |
|---|
| Rated Output Voltage | 230Vac | 230Vac | 230Vac | 230Vac | 230Vac | 230Vac | 230Vac | 230Vac | 230Vac |
|---|
| Rated AC Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
|---|
| Switch Time | 10ms (typical) | 10ms (typical) | 10ms (computer) / 20ms (home appliances) | 10ms (typical) | 10ms (typical) | 10ms (computer) / 20ms (home appliances) | 10ms (typical) | 10ms (computer) / 20ms (home appliances) | 10ms (typical) |
|---|
| PV Input |
|---|
| Num. of MPPT Trackers | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 1 |
|---|
| Max. PV Array Power | 300W | 4000W | 6500W | 6000W | 6000W | 8500W | 5500W + 5500W | 5500W + 5500W | 6000W |
|---|
| Input Current | 15A | 13A | 27A | 22A | 22A | 27A | 22A + 22A | 18A + 18A | 22A |
|---|
| Max. Open Circuit Voltage | — | 500Vdc | 500Vdc | 500Vdc | 500Vdc | 500Vdc | 500Vdc + 500Vdc | 500Vdc | 500Vdc |
|---|
| MPPT Voltage Range | 11~60Vdc | 120~450Vdc | 300~400Vdc (full load) | 120~450Vdc | 120~450Vdc | 360~430Vdc (full load) | 125~425Vdc | 300~400Vdc (full load) | 120~450Vdc |
|---|
| Solar Voltage Range (Vmp) | — | — | 60~500Vdc | — | — | 60~500Vdc | — | 90~500Vdc | — |
|---|
| Utility / Generator Input |
|---|
| Input Voltage Range | — | 90~280Vac | 220~240Vac | 90~280Vac | 90~280Vac | 220~240Vac | 90~275Vac | 220~240Vac | 90~280Vac |
|---|
| Frequency Range | — | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
|---|
| Bypass Overload | — | 30A | 6000W | 40A | 40A | 9300W | 63A | 16500W | 40A |
|---|
| System Parameters |
|---|
| Size (mm) | 530×326×172 | 830×400×235 | 680×670×249 | 830×500×235 | 970×860×250 | 920×670×249 | 1070×860×250 | 900×536×498 | 730×165×1430 |
|---|
| Weight | 19kg | 80kg | 80kg | 115kg | 135kg | 140kg | 151kg | 190kg | 130kg |
|---|
| Protection Degree | IP20, indoor only | IP20, indoor only | IP20, indoor only | IP20, indoor only | IP20, indoor only | IP20, indoor only | IP20, indoor only | IP20, indoor only | IP20, indoor only |
|---|
| Operating Temperature | -10~55°C, derating >45°C | -10~55°C, derating >45°C | -10~55°C, derating >45°C | -10~55°C, derating >45°C | -10~55°C, derating >45°C | -10~55°C, derating >45°C | -10~55°C, derating >45°C | -10~55°C, derating >45°C | -10~55°C, derating >45°C |
|---|
| Noise | <60dB | <60dB | <50dB | <60dB | <60dB | <50dB | <60dB | <50dB | <60dB |
|---|
| Cooling | Built-in fan | Built-in fan | Built-in fan | Built-in fan | Built-in fan | Built-in fan | Built-in fan | Built-in fan | Built-in fan |
|---|
| Communication | RS485 | RS485 / CAN | RS485 / CAN | RS485 / CAN | RS485 / CAN | RS485 / CAN | RS485 / CAN | RS485 / CAN | RS485 / CAN |
|---|
| Optional Module | — | Wi-Fi / GPRS | Wi-Fi | Wi-Fi / GPRS | Wi-Fi / GPRS | Wi-Fi | Wi-Fi / GPRS | Wi-Fi | Wi-Fi / GPRS |
|---|
| Expansion | — | Parallel battery expansion (customizable) | Parallel power & battery expansion (customizable) | Parallel power & battery expansion (customizable) | Parallel power & battery expansion (customizable) | Parallel power & battery expansion (customizable) | Parallel power & battery expansion (customizable) | Parallel power & battery expansion (customizable) | — |
|---|
Specifications are subject to change without notice. Please confirm details with us before ordering.
Applications
Typical installations and use cases for residential and light commercial energy storage
🏠
Residential Solar Self-Consumption
Store daytime solar energy and use it in the evening to raise self-consumption and cut grid electricity bills.
🔌
Home Backup Power
Keep lighting, refrigeration, networking and essential appliances running during grid outages.
⚡
Time-of-Use Tariff Savings
Charge from solar or from the grid at off-peak rates, then discharge during peak-tariff hours.
🚗
Homes with EV Charging
Higher-output models (8kW and 11kW) suit homes with larger loads such as EV chargers.
🏕️
Off-Grid & Remote Sites
Cabins, farms and remote buildings with PV panels or a generator and no stable grid connection.
🏪
Small Commercial Sites
Shops, workshops and small offices that need compact, plug-in style backup and solar storage.
Advantages
Why installers and distributors choose CoreMotor Tech for home energy storage
01
Flexible order quantities and competitive wholesale pricing — OEM/ODM and private-label options available
02
Export documentation and shipping coordination provided
03
Fast quotation with lead time confirmed before you order
04
English-speaking sales and technical support via WhatsApp
Frequently Asked Questions
Common questions about the all-in-one home energy storage system
What is the difference between the PT5510S and the PT5515SP / PT5516SP?+
Both deliver 5500W output with a built-in single MPPT. The PT5510S has a 10.24kWh battery (200Ah cells), while the PT5515SP / PT5516SP offer 14.336kWh or 16.0768kWh (280Ah or 314Ah cells) for longer backup time in a larger cabinet.
Can I expand the battery or power later?+
Most models support parallel expansion of both power and battery capacity (customizable). The PT3570S / PT3580S support parallel battery expansion. Tell us your target capacity and we will confirm the configuration.
What AC voltage do these systems output?+
All models output 230Vac at 50/60Hz. Please tell us your destination country so we can confirm grid-connection and certification requirements.
Can I get certification documents?+
Please contact us with the model and destination market, and we will provide the applicable certification documents on request.
Is OEM / private-label branding available?+
Yes. Private-label branding and custom configurations are available with flexible MOQ. Contact us via WhatsApp for OEM pricing.
Is the system suitable for outdoor installation?+
The protection degree is IP20 — indoor installation only (garage, utility room, living space).
