Key design and engineering features of the YC-80 Brake AC gear motor
✓
Integrated electromagnetic brake rated for 100,000+ engagement cycles
✓
Fail-safe spring-loaded design locks shaft automatically on power loss
✓
Reinforced Φ12mm output shaft for medium-duty radial and axial loads
✓
100% pure copper winding ensuring reliable 24/7 continuous operation
✓
Wide ratio range 1:3 to 1:850 for precise speed selection
✓
Dual voltage 110V/60Hz and 220V/50Hz for global deployment
Technical Specifications
Full parameter data and dimensional drawings
📋 Performance Parameter Table

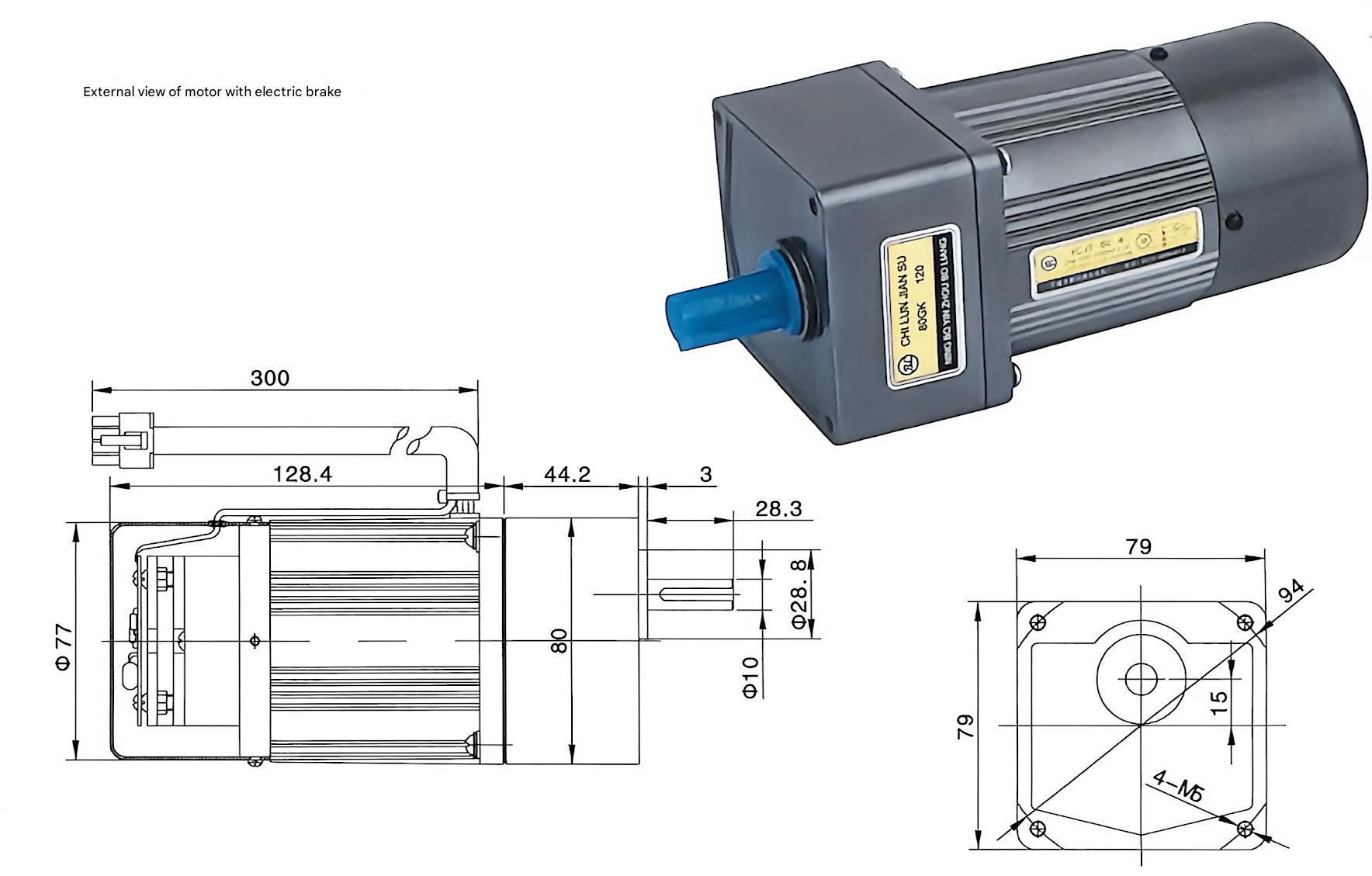

📐 Dimensional Drawing
| Parameter | Specification |
|---|
| Model | YC-80 Brake |
| Motor Type | AC Induction Motor |
| Rated Power | 25W |
| Supply Voltage | 110V / 220V |
| Frequency | 50Hz / 60Hz |
| No-Load Speed | 1250 / 1500 r/min |
| Gear Ratio Range | 1:3 – 1:850 |
| Output Shaft Diameter | Φ12mm |
| Frame Size | 80mm Square |
| Insulation Class | Class F (155°C) |
| Duty Cycle | S1 — Continuous 24/7 |
| Certification | ISO 9001 · CMA · CNAS · ILAC-MRA |
Applications
Typical industries and equipment where the YC-80 Brake excels
🏗️
Vertical Conveyor & Elevator Systems
Bucket elevators and vertical conveyor systems needing secure load hold on stop.
🚪
Roller Shutter & Loading Dock Doors
Industrial roller doors and loading dock equipment requiring fail-safe braking.
🧵
Textile & Winding Machinery
Fabric winders and tension control systems needing precise stop-and-hold control.
🎡
Amusement & Display Equipment
Rotating displays and light amusement equipment requiring safe positional stop.
Advantages
Why engineers and buyers choose CoreMotor Tech for the YC-80 Brake
01
100,000+ cycle brake rating significantly reduces maintenance intervals
02
Φ12mm shaft handles heavier positioning loads than 60/70mm class motors
03
ISO 9001, CMA, CNAS, ILAC-MRA certified — full export documentation standard
04
OEM custom specifications from MOQ 50 units — branding and packaging available
Frequently Asked Questions
Common questions about the YC-80 Brake AC gear motor
How many brake cycles can this motor handle?+
The electromagnetic brake is rated for over 100,000 engagement cycles under standard operating conditions, making it suitable for high-frequency start-stop applications.
Is the brake suitable for inclined conveyor applications?+
Yes. The fail-safe brake prevents load rollback on inclined surfaces when power is removed, making it well-suited for inclined conveyor drives, hoists and tilted positioning systems.
Does the brake require a separate power supply?+
No. The brake coil operates from the same supply as the motor. When the motor is powered, the brake releases. When power is cut, the brake engages automatically.
What is the brake response time?+
The brake engages in under 50ms after power interruption. This rapid response prevents load movement in safety-critical positioning applications.
